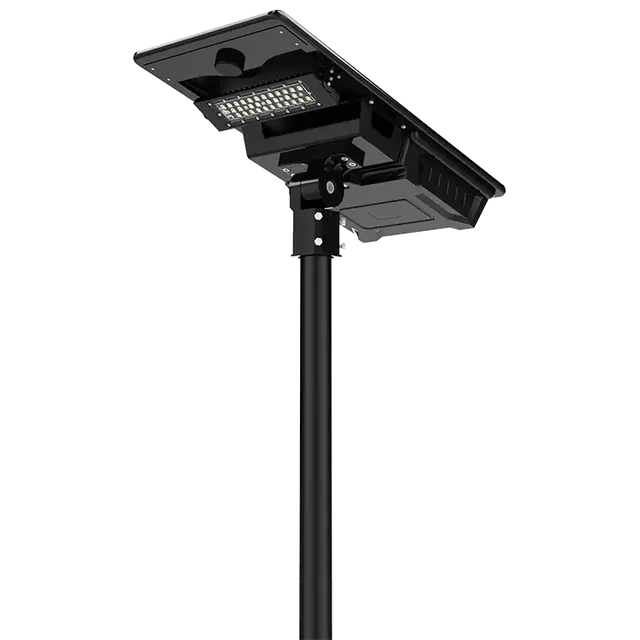

Sun Eater HD
Custom solar performance luminaire
Sun Eater HD is the performance driven, crystal clear high output AIO solar luminaire you have been searching for. All of the best features of our flagship model with tweaks to be lighter, sleeker and more customizable. Our intelligent mode enables 3–5 days of autonomous operation—regardless of weather or location. Featuring cutting-edge monocrystalline solar panel and battery technologies, the system is seamlessly integrated into a sleek, All-In-One (AIO) housing. Unique field-adjustable LED modules provide unmatched flexibility for on-site installations.
Applications
Roadways
Area
Parking lots
Hiking / Loop trails and parks
Pathways
Sport courts and facilities including playing fields
Key Features
No trenching or wiring required
15 minute installation
Field adjustable LED modules
Adjustable post top mounting option
Runs 3-5 days on intelligent mode
Immune to power outages from grid failure or natural disasters and copper wire theft
-
Technical Specifications
Type - Area Luminaire, Solar All In One (AIO)
Dimensions / Weights
20W : 750 × 366 × 106mm | 29.5 x 14.4 × 4.2”
10.0kg | 22.0lb
30W : 910 × 366 × 106mm | 35.8 x 14.4 × 4.2”
11.5kg | 25.3lb
40W : 1080 × 366 × 106mm | 42.5 x 14.4 × 4.2”
13.0kg | 28.7lb
50W : 1210 × 366 × 106mm | 47.6 x 14.4 × 4.2”
14.5kg | 32.0lb
60W : 1345 × 366 × 106mm | 53 × 14.4 × 4.2”
16.0kg | 35.3lb
80W : 1060 × 550 × 110mm | 41.7 × 21.7 × 4.3”
24.0kg | 53.0lb
100W : 1145 × 550 × 110mm | 45.1 × 21.7 × 4.3”
28.0kg | 61.7lb
120W : 1390 × 550 × 110mm | 54.7 × 21.7 × 4.3”
31.0kg | 68.3lb
Construction
Salt Spray Tested, Rugged die-cast aluminum
Stainless, vandal resistant fasteners
Pre-drilled for installation
Finish
Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments)
IP Rating
IP65, according to standard EN 60529
Finish Color
Standard Black

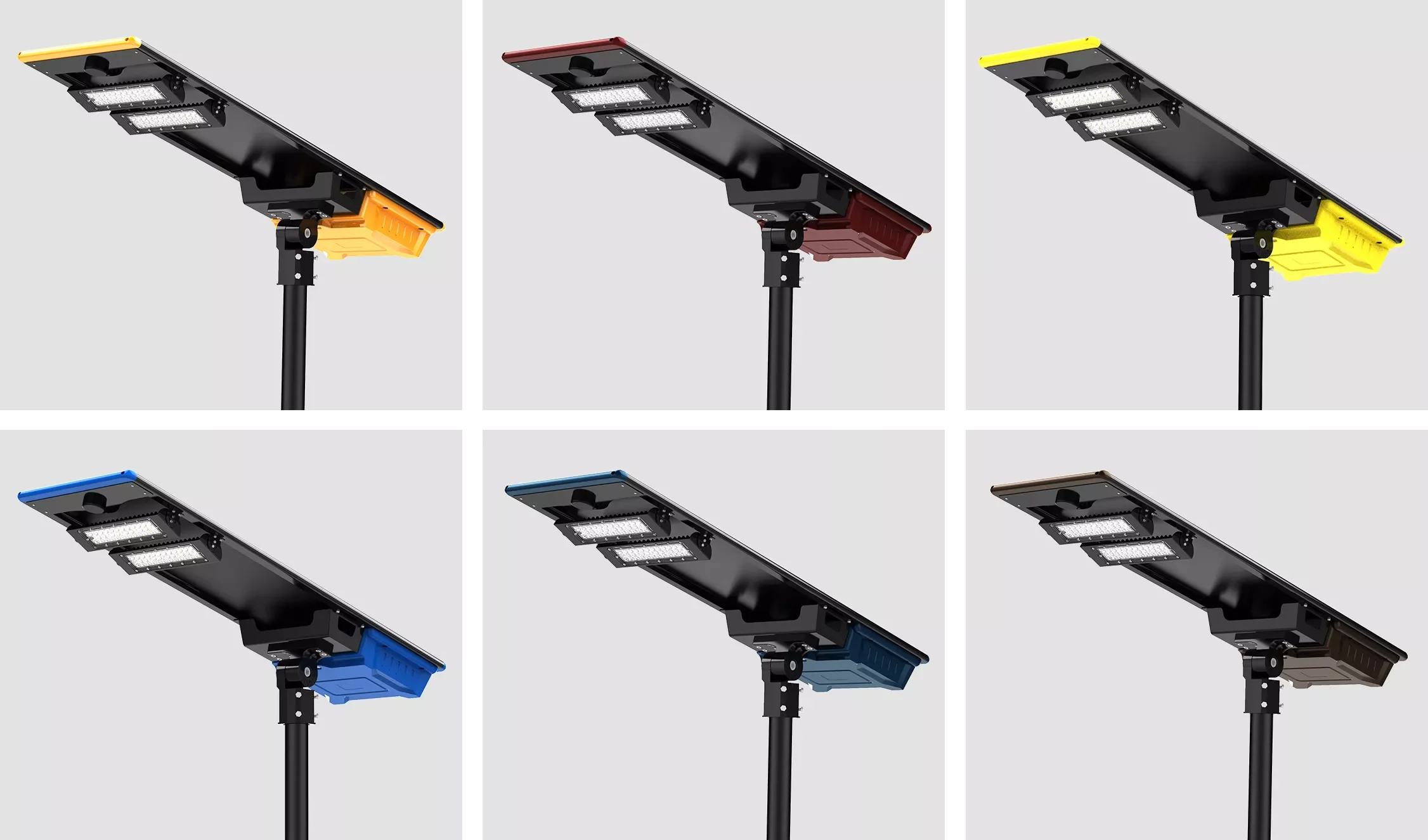

Custom color on request, C5-grade painting
-
Mounting Options
Universal post top tenon mount for 2 3/8”
Pole Recommendations
Ideal for retrofitting to existing poles or new projects. Our product team will ensure you have everything you need to make your installation run smoothly.
Pole Shapes
Round
Square
Tapered / Straight
Pole Heights - Suitable to mount from 9.5’ to 39’
Pole Composition
Steel
Aluminum
Fibreglass
-
Intelligence
Intelligent mode increases autonomy, reduces battery consumption and maximises lighting conditions with minimal disruption to surrounding environment
Controllers
Photocell sensor
Timing
Dimming
Intelligent power saving
Microwave sensor
PIR sensor
LED Specs
Model 5050 model
Lens Polycarbonate
Efficacy 210lm/W
Lumens 4,200 - 24,000lm
CRI 70Ra, 80Ra Optional
Beam - T203(65150°) / T212(75165°) / T304(75*160°) / T402(80*150°) / T502(150*150°)
Color Temperature & Wavelength Options
3000K
4000K
5000K
Amber wavelength (Wildlife friendly) 589.9nm
Lifetime Rating
100,000hr LED L90B10 Lifetime
Driver
Commercial, high efficacy LED driver
Integrated light distribution technology
Intelligent mode reduces light decay and maximizes lifetime LED modules
Power
Solar Panel - Single side monocrystalline solar panel
Battery
Li-ion Battery - 12.8V 12-45AH / 12.8V 24AH / 12.8V 30AH / 12.8V 36AH / 25.6V 24AH / 25.6V 30AH / 25.6V 36AH
Charging Time - 4.62- 6.5hrs
Battery Lifespan - >2000 times cycle
Maximum Autonomy - Operate 2~3 rainy days under intelligent model
-
Warranty
Certified for extreme temperatures and humidity
10+ yr battery life
10 yr warranty
20 year lifespan
Engineered for harsh environments

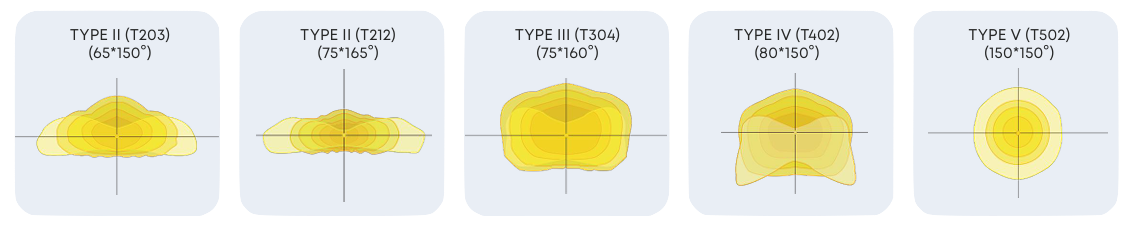

Photometrics
Engineered to focus light payoff where you need it most, our standard lighting distributions give you options while the field adjustable LED modules provide flexibility on site at installation. All distributions are DarkSky compliant, avoiding bleed and light pollution.
We recommend a lighting plan is created for each installation, guiding proper orientation and placement for best practices.
