SUN EATER PTS
Modern Form. Off-Grid Function
Intelligent Solar Post Top Lighting with Modern Edge

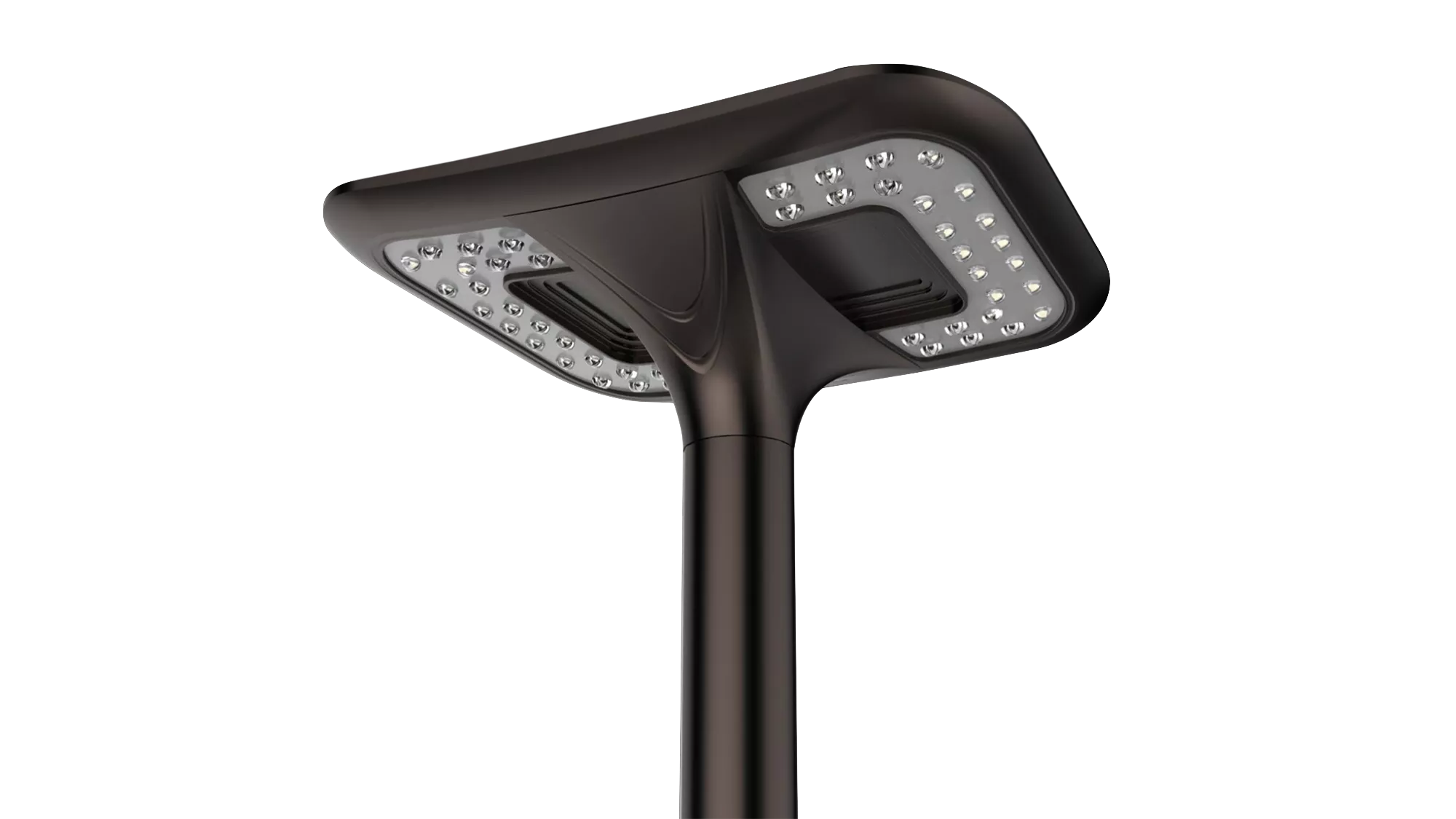

The SUN Eater PTS is a square-form solar post top luminaire designed to elevate streetscapes, pathways, courtyards, and public spaces with clean, off-grid lighting. Powered by high-efficiency solar panels and a robust LiFePO₄ battery, the PTS delivers reliable, long-lasting illumination with minimal maintenance. At its core, an advanced MPPT controller ensures maximum energy efficiency and intelligent power management. Engineered for visual harmony and performance, the streamlined square design integrates effortlessly into modern environments. With optional hybrid or grid-tied capability, the SUN Eater PTS offers unmatched flexibility for sustainable lighting in any setting.
Applications
Pathways
Trails
Parking lots
Pedestrian areas
Parks and Gardens
Sensitive wildlife areas
Key Features
No trenching or wiring required
15 minute installation
360° illumination
Dark Sky certified with 0% uplight
Advanced controller enabled
Solar powered, Grid powered or Hybrid powered
Runs 2-3 days on intelligent mode
Immune to power outages from grid failure or natural disasters and copper wire theft
-
Technical Specifications
Type - Area Luminaire, Solar All In One (AIO), Post top
Dimensions / Weights
10 - 30W : 570.0 × 370.0 × 180.0mm | 25.5 x 14.6 × 7.1”
10W 6.2kg | 13.7lb
20W 6.9kg | 15.2lbs
30W 7.5kg | 16.5lbs
Construction
Salt Spray Tested, Rugged die-cast aluminum
Stainless, vandal resistant fasteners
Pre-drilled for installation
Finish
Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments)
IP Rating
IP65, according to standard EN 60529
Finish Color
Standard Black
Custom color on request, C5-grade painting
-
Mounting Options
Post top
Pole Recommendations
Ideal for retrofitting to existing poles or new projects. Our product team will ensure you have everything you need to make your installation run smoothly.
Pole Shapes
Round
Square
Tapered / Straight
Pole Heights - Suitable to mount from 9.5’ to 22.5’
Pole Composition
Steel
Aluminum
Fibreglass
-
Intelligence
Intelligent mode increases autonomy, reduces battery consumption and maximises lighting conditions with minimal disruption to surrounding environment
Controllers
PIR sensor
Microwave sensor
Optional field programming remote
Interactive timing and dimming
LED Specs
Model 5050, custom on request
Lens Polycarbonate
Efficacy 190lm/W
Lumens 1,900 - 5,700lm
CRI 70Ra

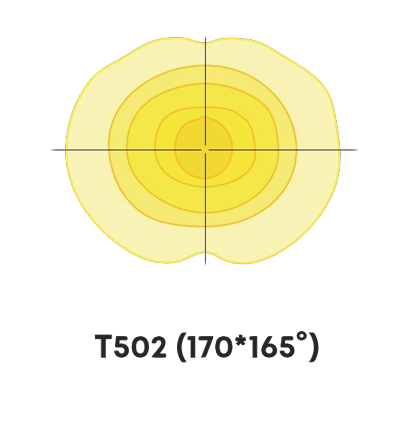

Beam - T502(170°*165°)
Color Temperature & Wavelength Options
3000K
4000K
5000K
Amber wavelength (Wildlife friendly) 589.9nm
Lifetime Rating
100,000hr LED L70 Lifetime
Driver
Commercial, high efficacy LED driver
Integrated light distribution technology
Intelligent mode reduces light decay and maximizes lifetime LED modules
Power

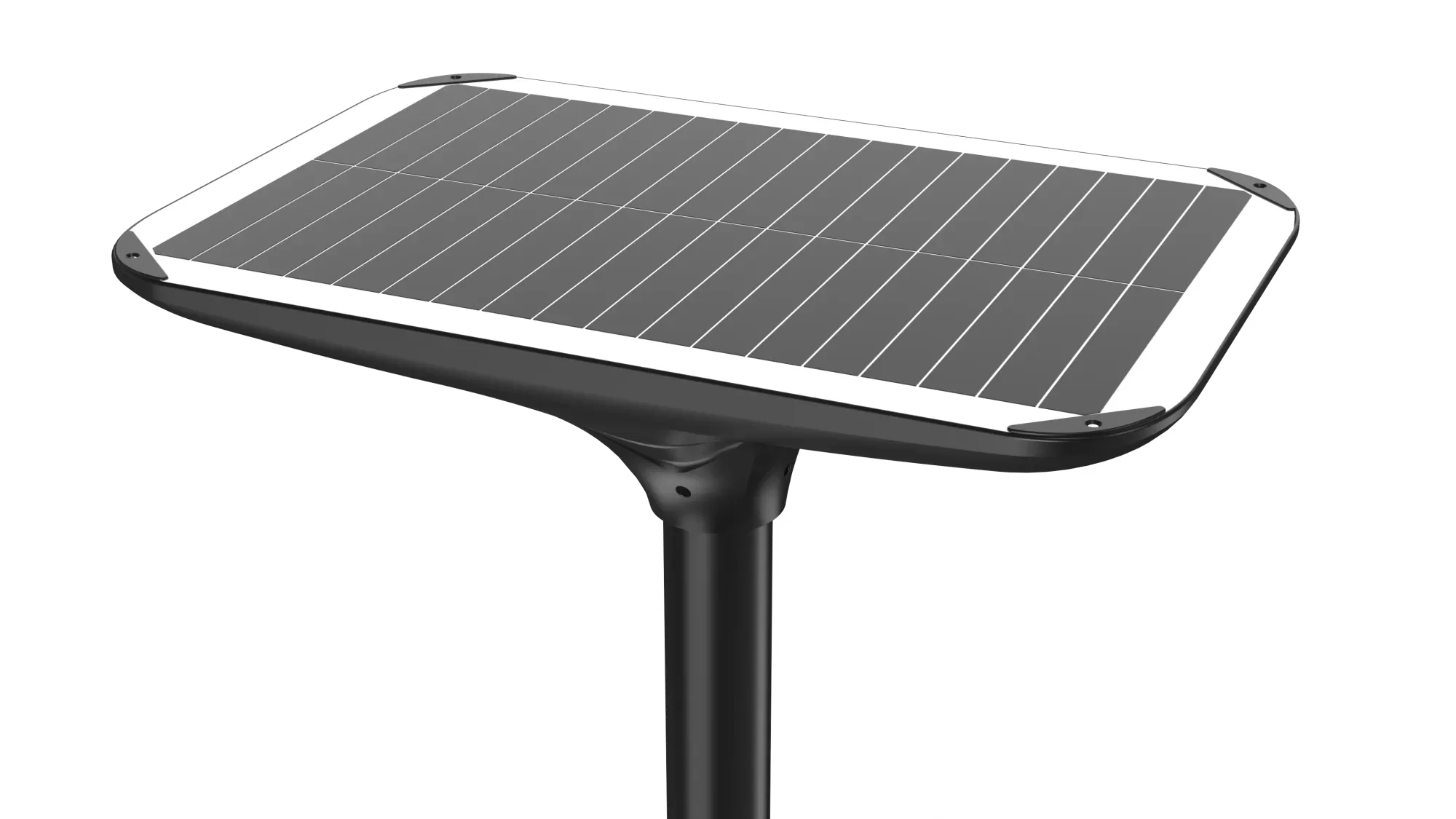

Solar Panel - Monocrystalline solar panel
Battery
Li-ion Battery - 12.8V 6-18AH
Charging Time - 2 - 8hrs
Battery Lifespan - >2000 times cycle
Maximum Autonomy - Operate 2~3 rainy days under intelligent model
-
Warranty
Certified for extreme temperatures and humidity
10+ yr battery life
10 yr warranty
20 year lifespan
Engineered for harsh environments
Photometrics
Engineered to focus light payoff where you need it most, our standard lighting distributions give you options while the field adjustable LED modules provide flexibility on site at installation. All distributions are DarkSky compliant, avoiding bleed and light pollution.
We recommend a lighting plan is created for each installation, guiding proper orientation and placement for best practices.
In pedestrian cityscapes, the SUN Eater PTS offers more than just light—it brings architectural presence by day and safe, comfortable illumination by night. With precision-engineered optics delivering up to 190 lumens per watt, the PTS ensures uniform light distribution and visual comfort across pathways, plazas, and courtyards. A range of beam patterns is available to suit diverse applications, with customizable optics to meet site-specific needs.
